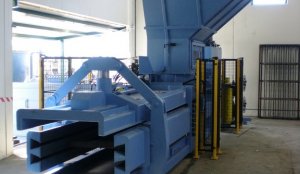

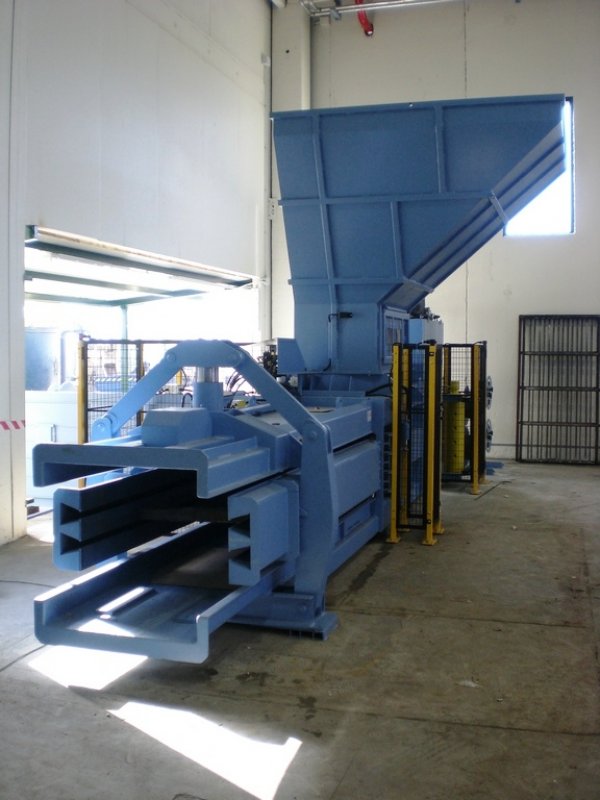

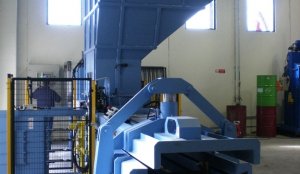

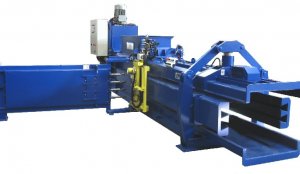

ORMIC Baler OCT 80X80 70T
Description
The ORMIC baler OCT80X80-70T is manufactured from profiles IPE, HEB, UNP board and steel plates. As all the equipment of Ormic Spa axles and pins are made of steel C40, the grommets and the wheels are heat-treated and hardened at high frequencies. The same heat treatment is applied with particular attention to the cutting blades of the baler which are made of steel for heavy tools. Bearings and rollers are made of bronze BZ14, Nylatron, black GSM of high density. Trolley wheels and axles are equipped with grease blocks and zert fittings for easy lubrication.
The surface treatment (painting) is made by specialized technicians using a high quality paint dual consistence with epoxy base and anti-corrosive, passed with two coats of color to achieve the appropriate thickness, the same procedure is applied to the rest of the sorting plant.
Extra attention is given to the protective guards, which should retain the convenience of operator to intervene without compromising the security according the existing legislation.
General Characteristics
|
Total Length |
8.355 mm |
|---|---|
|
Width |
5.300 mm (edge to edge) |
|
Height |
1.300 mm(at the hopper base) |
|
Hopper base |
1.450 x 740 mm |
|
Bale Section |
800 x 800 mm (dim. W x H) |
|
Bale Length |
Variable |
|
Baler Weight |
9.000 kg (less oil) |
Technical Characteristics
|
Installed Power |
18+4+2.2+(0.35)KW |
|---|---|
|
Operating Pressure |
308 bar MAX |
|
Ram Force |
70,000 kg |
|
Ram Face Pressure |
10.9 kg/cm² |
|
Oil reservoir capacity |
700 liters |
|
Cooling |
Ventilated air/oil exchanger |
|
Volume production per hour |
130 m3/h |
|
Loose material of density 30Kg/m3 |
1.950 Kg/h |
|
Loose material of density 35Kg/m3 |
4.500 Kg/h |
|
Extrusion Chamber Volume |
0.9 m3 |
| Number of bindings | 4 |
|
Cycle time |
15-20sec |
|
Cycles per minute |
3 |
|
Binding time |
24 sec |
